Table Overview for Cubic Indoor Particulate Matter Sensor

Model	Light Source	Measurement Range	Accuracy	Communication	Dimensions	Recommendations
Small Size Laser Particle Sensor PM2012SE-A/PM2012SE-B PM2012SE-A/B	Laser	0~5000μg/m³	PM1.0/PM2.5:0~100μg/m³, ±10μg/m³ 101~500μg/m³, ±10% reading PM10:0~100μg/m³, ±25μg/m³ 101~500μg/m³, ±25% reading	UART, I²C	W38H35D12 (mm)	Small size Inlet and outlet in same or opposite side	Specifications Features Measurement Range 0~5000μg/m³ Accuracy PM1.0/PM2.5:0~100μg/m³, ±10μg/m³ 101~500μg/m³, ±10% reading PM10:0~100μg/m³, ±25μg/m³ 101~500μg/m³, ±25% reading Communication UART, I²C Dimensions W38H35D12 (mm)
Anti-dust Laser Particle Sensor PM2016 PM2016	Laser	0~1000μg/m³	PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ 101~500μg/m³, ±10% reading PM10: 0~100μg/m³, ±25μg/m³ 101~500μg/m³, ±25% reading	UART, I²C	W40.7H40.7D12.2 (mm)	Better identification of PM1.0, PM2.5, PM10 based on the API (Auto particle identification) innovation technology High performance automotive standard laser diode, better accuracy for PM10 with real measurement High accuracy at the low concentration.	Specifications Features Measurement Range 0~1000μg/m³ Accuracy PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ 101~500μg/m³, ±10% reading PM10: 0~100μg/m³, ±25μg/m³ 101~500μg/m³, ±25% reading Communication UART, I²C Dimensions W40.7H40.7D12.2 (mm)
Low Power Particle Sensor PM2105L PM2105L	Laser	0~1000μg/m³	PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ ＞100μg/m³, ±10% reading PM10: 0~100μg/m³, ±30μg/m³ 101~1000μg/m³, ±30% reading	UART, I²C	W42H35D23.7 (mm)	Lower power consumption, less than 0.9mA available. Suitable for battery-powered devices The high performance fan: 3S fan speed stable, 4S stable reliable reading output Real measurement for PM10	Specifications Features Measurement Range 0~1000μg/m³ Accuracy PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ ＞100μg/m³, ±10% reading PM10: 0~100μg/m³, ±30μg/m³ 101~1000μg/m³, ±30% reading Communication UART, I²C Dimensions W42H35D23.7 (mm)
Laser Particle Sensor PM2008-API PM2008-API	Laser	0~5000μg/m³	PM1.0&PM2.5: 0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading PM10: 0 ~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading	UART, I²C	W47.8H36.8D12 (mm)	High accuracy @ <35ug/m³: ±5ug/m³ API (Auto particle identification) innovation technology Air inlet and outlet on the same side	Specifications Features Measurement Range 0~5000μg/m³ Accuracy PM1.0&PM2.5: 0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading PM10: 0 ~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading Communication UART, I²C Dimensions W47.8H36.8D12 (mm)
Laser Particle Sensor with Screw Hole PM2008M-M PM2008M-M	Laser	0~5000μg/m³	PM1.0&PM2.5: 0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading PM10: 0 ~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading	UART, I²C	W48H40D12 (mm)	High accuracy @ <35ug/m³: ±5ug/m³ Mounting ears for easy installation with screw	Specifications Features Measurement Range 0~5000μg/m³ Accuracy PM1.0&PM2.5: 0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading PM10: 0 ~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading Communication UART, I²C Dimensions W48H40D12 (mm)
LED Particle Sensor PM1003 PM1003	LED infrared	0~500μg/m³	PM2.5: 0~100 μg/m³:±30μg/m³; 100~500 μg/m³: ±30% of reading	PWM, UART	W59H45D20 (mm)	Temperature compensation within whole measurement range	Specifications Features Measurement Range 0~500μg/m³ Accuracy PM2.5: 0~100 μg/m³:±30μg/m³; 100~500 μg/m³: ±30% of reading Communication PWM, UART Dimensions W59H45D20 (mm)
LED Particle Sensor with Dust Correction PM1006K PM1006K	LED infrared	0~1000μg/m³	PM2.5: 0~ 100μg/m³, ±20μg/m³ 100~1000μg/m³, ±20% of reading PM1.0/PM10: No accuracy definition	UART,PWM	W46.2H34.1D18 (mm)	Built-in MCU, real-time output PM1.0, PM2.5, PM10 in μg/m3 Auto lens dust deposition correction	Specifications Features Measurement Range 0~1000μg/m³ Accuracy PM2.5: 0~ 100μg/m³, ±20μg/m³ 100~1000μg/m³, ±20% of reading PM1.0/PM10: No accuracy definition Communication UART,PWM Dimensions W46.2H34.1D18 (mm)
LED Dust Sensor for Vacuum Cleaner PM1009 PM1009	LED infrared	0-10000pcs	No accuracy definition	UART	Main control PCBA ( L26.5W16.0H1.0 mm)	4-channel particle count output: 10μm-60μm, 60μm-180μm, 180μm-500μm and 500μm; Suitable for vacuum cleaner, sweeper robot	Specifications Features Measurement Range 0-10000pcs Accuracy No accuracy definition Communication UART Dimensions Main control PCBA ( L26.5W16.0H1.0 mm)
LED Dust Sensor for Floor Scrubber PM1010 PM1010	LED infrared	0-100 levels	No accuracy definition	UART	Main control PCBA ( L26.5W16.0H1.0 mm)	Sewage pollution level output through UART protocal Suitable for floor scrubber, floor washing machine	Specifications Features Measurement Range 0-100 levels Accuracy No accuracy definition Communication UART Dimensions Main control PCBA ( L26.5W16.0H1.0 mm)

Particulate Matter Sensor

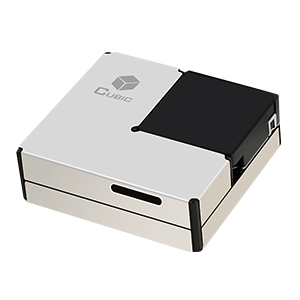

Anti-dust Laser Particle Sensor
PM2016

PM2016

PM2016 is an anti-dust structure laser particle sensor with PM1.0, PM2.5, PM10 output. It measures and calculates the suspending particle number which is within unit volume on the air exactly and output particle mass concentration μg/m3 directly via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle range

0.3μm~10μm

Measurement range

0~1,000μg/m³

Accuracy

PM1.0/PM2.5: 0~100μg/m³ : ±10μg/m³ , 101~500μg/m³ : ±10% of reading
PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading
(GRIMM, 25±2℃, 50 ±10%RH)

Time to first reading

≤ 8 seconds
- The smallest size of available measurement: 0.3μm
- Real-time output particle mass concentration in μg/m3 is available
- VOC, temperature and humidity measuring function is reserved
- High accuracy, high sensitive and quick response
- Small size, compact structure, easy to install
- Same side air inlet and outlet
- Anti-dust structure

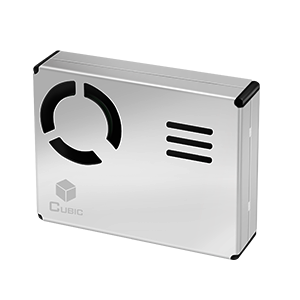

Laser Particle Sensor
PM2008-API

PM2008-API

PM2008-API laser particle sensor module is based on laser scattering technology, ultra-thin (12mm) designed with all metal shielding. Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

0.3μm~10μm

Measurement range

0~5000μg/m³

Measurement accuracy for PM1.0&PM2.5

0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading

Measurement accuracy for PM10

0~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading
- Real-time output PM1.0、PM2.5、PM10 in μg/m3 available
- All metal shielding, strong anti-interference
- Smaller and thinner structure design, height only 12mm
- High accuracy, high sensitive and quick response (≤8s)
- Signal output optional: UART, I²C

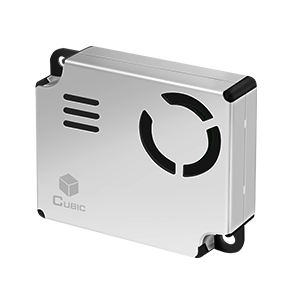

Laser Particle Sensor with Screw Hole
PM2008M-M

PM2008M-M

PM2008M-M add screw hole design laser particle sensor module is based on laser scattering technology, ultra-thin (12mm) designed with all metal shielding.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

0.3μm~10μm

Measurement range

0~5000μg/m³

Accuracy

PM1.0/PM2.5: 0~35μg/m³ : ±5μg/m³ , 35ug/m³~500μg/m³ : ±15% of reading
PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading
(GRIMM, 25±2℃, 50 ±10%RH)

Reference instrument

GRIMM
- Hanging ear design for easy installation
- Real-time output PM1.0, PM2.5, PM10 in μg/m3 available
- All metal shielding, strong anti-interference
- Smaller and thinner structure design, height only 12mm
- High accuracy, High sensitive and quick response (≤8s)
- Signal output optional: UART, I²C

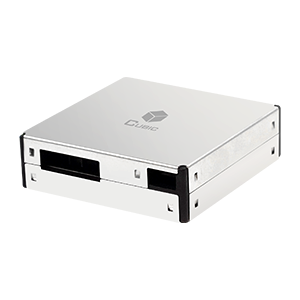

Small Size Laser Particle Sensor
PM2012SE-A/PM2012SE-B

PM2012SE-A/PM2012SE-B

PM2012 smallest size laser particle sensor module is based on laser scattering technology.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 directly via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measurement particle

0.3μm~10μm

Measurement range

0~5000μg/m³

Accuracy

PM1.0/PM2.5: 0~100μg/m³ , ±10μg/m³ ; 101ug/m³~500μg/m³ , ±10% of reading
PM10: 0~100μg/m³ , ±25μg/m³ ; 101~500μg/m³, ±25% of reading
(GRIMM, 25±2℃, 50 ±10%RH)

Timeto first reading

≤8s
- Smallest & ultra-thin
- High accuracy
- High sensitive and quick response(≤8s)
- Signal output optional: UART, I²C
- Compact structure, light weight, easy to install

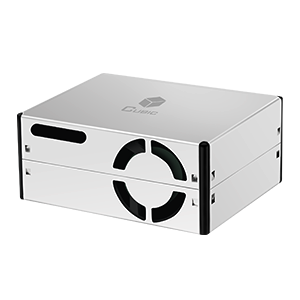

Anti-dust Laser Particle Sensor
PM2009L

PM2009L

PM2009L with anti-dust structure laser particle sensor module is based on laser scattering technology.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measurement particle

0.3μm~10μm

Measurement range

0~5000μg/m³

Measurement accuracy for PM2.5/PM1.0

0~100μg/m³, ±10μg/m³ ;101~500μg/m³, ±10% reading (GRIMM, 25±2℃, 50 ±10%RH）

Measurement accuracy for PM10

0~100μg/m³, ±25μg/m³ ;101~500μg/m³, ±25% reading (GRIMM, 25±2℃, 50 ±10%RH）
- All metal shielding, strong anti-jamming capability
- Particle quantity and mass concentration output simutaneously
- High accuracy, high stability
- High sensitive and quick response (≤8s)
- Compact structure, light weight, easy to install

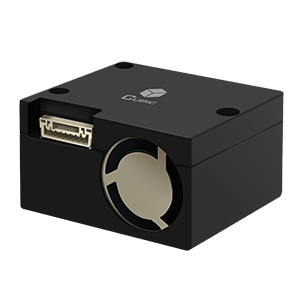

Low Power Particle Sensor PM2105L

PM2105L

PM2105L is a laser particle sensor module for indoor use based on laser scattering technology. This sensor can measure particle concentration size between 0.3μm~10μm exactly and output particle mass concentration PM1.0, PM2.5, PM10 in μg/m³ directly via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Operating principle

Laser scattering

Measured particle size

0.3μm~10μm

Measurement range

0~1000μg/m³

Resolution

1μg/m³
- Low power suit for battery supply application
- Real-time output PM1.0, PM2.5, PM10 in μg/m3 available
- High accuracy, high sensitive and quick response
- Signal output optional: UART, I²C, PWM
- RoHS and Reach compliant
- Air inlet and outlet on different side

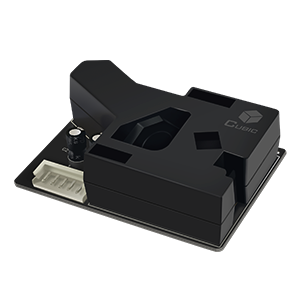

LED Particle Sensor
PM1003

PM1003

PM1003 infrared (LED) particle sensor real time output PM2.5.Designed to detect the variation trend of particle concentration size between 1.0μm~10μm. It can measure dust concentration in the air by detecting the intensity of scattered light,and output real time concentration via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

1.0μm~10μm

Measurement range

0~500μg/m³

Accuracy

0~100 μg/m³:±30μg/m³; 100~500 μg/m³: ±30% of reading (25±2℃, 50±10%RH)

Response time

≤30 seconds
- Particle measured size range: 1.0μm~10μm
- Built-in MCU, directly output particle mass concentration (μg/m3)
- Electromagnetic shielding, anti-interference
- High stability and good consistency
- Signal output optional: PWM, UART
- Temperature compensation within whole measurement range
LED Particle Sensor with Dust Correction PM1006K

PM1006K

PM1006K infrared (LED) particle sensor real time output PM2.5 with dust deposition self-correction. It can measure dust concentration in the air by detecting the intensity of scattered light,and output real time concentration via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

0.3μm~10μm

Measurement range

0~1000μg/m³

Accuracy

±20μg/m³ or ±20% of reading(@voltage 5.0V, 25±2℃, 50±10%RH)

Response time

8s
- Built-in MCU, directly output particle mass concentration (μg/m³)
- Optimized lens design, the sensor can identify 0.3μm particle
- High accuracy, high stability, quick response
- Temperature compensation with the whole measurement range
- Auto lens dust deposition correction
- Compact structure, light weight and easy for installation

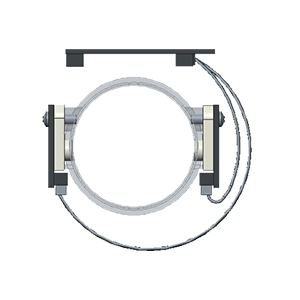

LED Dust Sensor for Vacuum Cleaner
PM1009

PM1009

PM1009 is a LED dust sensor, can accurately measure 4-channel particle which pass through vacuum cleaner's vacuum pipe or vacuum extension rod pipe.

Learn more

Specifications Features

Operating principle

LED infrared

Measurement range

0-10000pcs

Measurement channel

10μm-60μm, 60μm-180μm, 180μm-500μm, 500μm

Response time

0.5s
- Easy integration to customer device;
- 4-channel particle count output for different particle size range: 10μm-60μm, 60μm-180μm, 180μm-500μm and 500μm;
- Quick response;
LED Dust Sensor for Floor Scrubber
PM1010

PM1010

PM1010 is a LED dust sensor can quickly detect the pollution degree of sewage in the suction pipe of floor washing robot.

Learn more

Specifications Features

Operating principle

LED infrared

Measurement range

0-100 levels

Response time

0.5s

Working temperature

-10~60℃; 0~95%RH (non-condensing)
- Sewage pollution level output through UART protocal
- Easy integration to customer device
- Quick Response
